Special Operation Forces Litter (SOF-L) Quad-Fold

Special Operation Forces Litter (SOF-L) Quad-Fold

Code: 10015856

Old Code: FNFM800

Supplier Part: FMS-FM800A100

Unit: EA

The old code for this product is: FNFM800

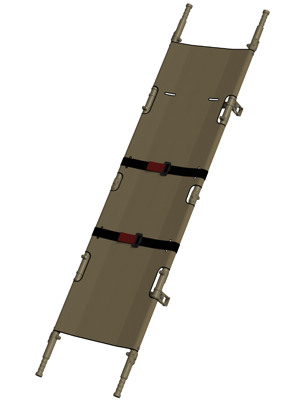

Ferno Military System's Special Operation Forces Litter (SOF-L) is designed for all military aircraft and vehicles.

The SOF-L Litter is optimum for every platform, deploys in seconds and represents the future of tactical evacuation. It is durable and repairable with a low effective life-cycle cost.

The SOF-L is infinitely sustainable. All components of the litter frame including bed covers, handles, frame sections and patient restraintsare are replaceable while in the field using just a Phillips head screwdriver. Deployed units can utilise a parts cache or cannibalise one litter to keep the remainder of the inventory in service.

Features & Benefits:

  • Self-leveling feet prevents damage to aircraft floor
  • Removable and replaceable patient restraints (alloy buckles)
  • Removable and replaceable covers
  • Modular Litter Frame - each section is field replaceable
  • Easy-to-decontaminate polypropylene mesh cover
  • Quad-Fold design


  • OPEN Length: 230cm

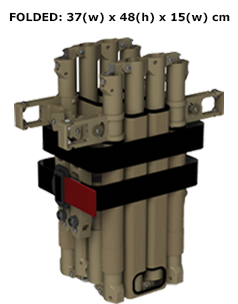

  • FOLDED LxHxW: 37 x 48 x 15 cm
  • Length Handles Folded: 188 - 196 cm
  • Weight: 8.6kg
  • Load Rating: 159kg
  • UOM: each
  • Images are sample of product

FNFM800 diagram.png


Request further information on this product
